By Bob Lesher on  4/5/2021

Pressure-Sensitive Adhesive 101 - Rubber-Based PSA

Rubber based adhesives for die-cut gaskets and seals

Pressure-Sensitive Adhesive – PSA, as we material converting geeks like to say – is just that, an adhesive that sticks when you apply pressure to it. And because one size doesn’t fit all, PSAs are manufactured in a wide range of constructions using an equally large number of adhesive chemistries.

As a flexible materials converter, our customers’ requirements often require us to laminate a pressure-sensitive adhesive backing to another material, like foam, felt, flock, fiberglass insulation, or even metal foil.  The PSA we use may be a high-performance, high-temperature silicone, a mid-range acrylic, or even a lower-cost, high-tack rubber adhesive.

But before we dive into the exciting world of rubber-based adhesives, we’d like to acknowledge the team at Avery Dennison Performance Tapes and thank them for the time and effort they contributed during the research and writing of this post. For it is through the picking of their collective brains that we were able to create such a well-thought-out and useful piece of rubbery, adhesive-laden content. Enjoy!

Are you ready to learn more about rubber-based pressure-sensitive adhesives and how they may be an excellent option for your custom die-cut parts? Then let's get going.

Rubber-Based Adhesive – Just the Basics

Rubber-Based Adhesive:

A blend of natural or synthetic rubber (the flexible stuff), tackifying resins (the sticky stuff), and other specialty performance additives (e.g., antioxidants, pigments, plasticizers, UV stabilizers) are applied to a carrier with a removable liner.

While rubber-based adhesives can’t necessarily cover the same range of applications that, say, the higher-priced acrylics and silicone adhesives can, for the right applications, they can offer an adhesive solution that’s a worthwhile balance of form, function, and economics.

Rubber Adhesives by Any Other Name: Natural vs. Synthetic Rubber

Now that we’re one baby step closer to becoming an expert in rubber adhesives, let’s up the ante and talk about how rubber adhesives are made. Keeping things simple, rubber adhesives can be classified into two main buckets: naturals and synthetics.

Natural rubber is just that – rubber that’s made from the naturally-occurring resin (latex) harvested from Hevea brasiliensis, or, as non-botanists like to call it, the rubber tree. Natural rubber is the oldest type of adhesive base, with its earliest known use dating back to 1600 BCE.

And because of its low cost-to-performance ratio, it’s still one of the most popular adhesives on the market, finding use in the bonding of organic and porous materials like leather, paper, fabrics, and other rubber products.



Synthetic rubber, often generically called elastomers, is based on petroleum-derived (oil-based) chemistry, with the most common variety being styrene butadiene rubber (SBR). Much like their “greener” cousin, natural rubber, synthetic rubber can be enhanced with different tackifying resins and other additives making it utterly customizable in just about every way that matters.

While significantly more expensive than natural rubber, synthetic rubber is far more versatile and stable across a broader range of temperatures.

How Rubber-Based Adhesives are Made: Solvent vs. Hot-Melt

As we’ve just learned, not all rubber is created equally, and while the rubber’s base chemistry plays a significant role in the way it performs as an adhesive, so too does the way it’s made. Regarding how it’s made, rubber-based adhesives are made using two basic manufacturing methods – solvent-based and so-called hot-melt. Let’s dive a little deeper into each and learn what sets them apart from one another.

  • Solvent-based – This process uses various solvents to cause the adhesive components (rubber, tackifier/resin, and additives) to mingle with each other and form a single, homogenous mixture. Once everything’s mixed up nicely, the liquid adhesive is applied to a substrate where the volatile solvents evaporate leaving the tacky film behind.

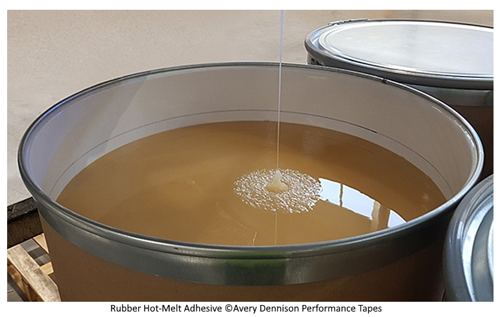

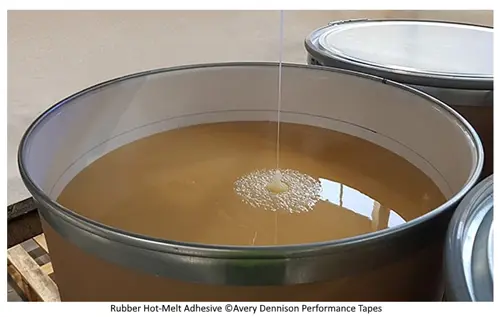

  • Hot-melt – Heat is used to solubilize the adhesive ingredients in this process. The various solid adhesive components are heated and mixed before being applied to a substrate, after which they cool and solidify, leaving behind a permanently tacky adhesive surface.

How Rubber-Based Adhesives React to Temperature Fluctuations

Now that we know a little bit more about how rubber-based adhesives are made and what they’re made of, it’s time to talk adhesive selection. When choosing an adhesive, it is always important to consider the temperature at which the adhesive will be used (the service temperature) and the temperature at which you’ll be sticking it to the substrate (application temperature).

While repeated temperature cycles won’t typically damage a rubber-based adhesive tape (tapes under load and subject to shear stresses notwithstanding), they can temporarily change the physical state of the rubber material itself. Let’s look at how low and high temperatures can impact the performance of rubber adhesives.

  • Low Temperatures (<50F/10C) — Rubber-based adhesives perform quite well at lower temperatures. Lower temperatures can, however, impact rubber adhesives during the application process as the rubber itself tends to thicken and become “glassy”, causing it to lose some of its initial tackiness.
  • High Temperatures (>100F/38C) — Up to a point (about 300F/150C), elevated heat can temporarily change the physical characteristics of rubber adhesives, making them softer and more fluid, actually enhancing flow and spread and improving adhesion. An unwanted side-effect of high temperatures is plasticizer migration – where chemicals present in the adhesive substrate migrate into the adhesive itself

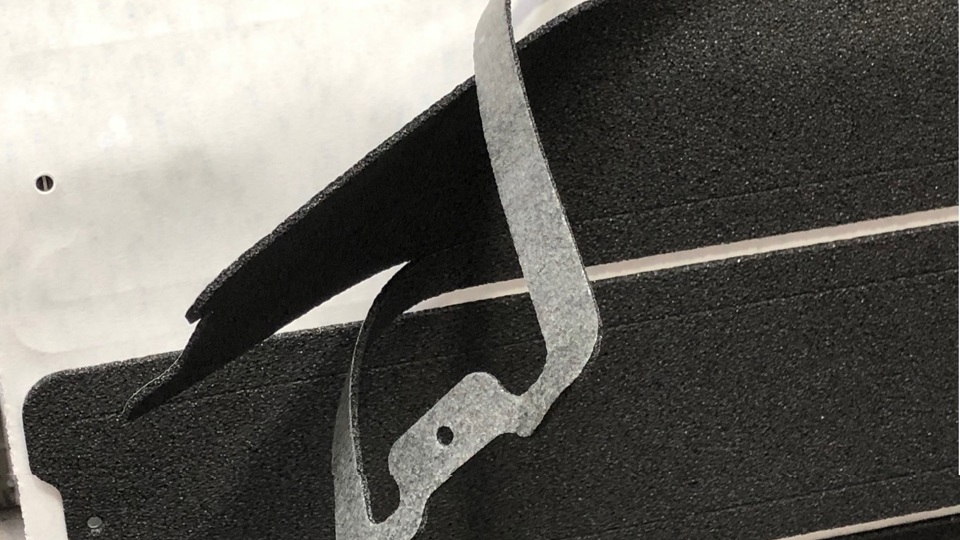

Die-Cutting Rubber-Based Adhesives – Your Converter Can Make All the Difference

Now that we’ve learned the basics about rubber adhesives – how they’re a great bonding option if you’re looking for a nice balance of performance, ease of use, and cost, how they’ll work across a wide range of temperatures and on most standard materials – it’s time to talk die-cutting.

Die-cutting rubber-based adhesives can be tricky; the stuff wants to stick to everything it touches. Because of their immediate adhesion and high tack, they can also leave a residue behind, not typically seen with acrylic adhesives. Die-cutting machinery and dies don’t like sticky residues. This is why your typical die-cutter wants to steer clear of processing rubber-based pressure-sensitive adhesives. JBC Technologies isn’t your typical die-cutter.

We love a challenge. Facing them, head-on is how we’ve become so good at what we do. Want a rubber adhesive on your die-cut part? Let us put our over three decades of experience to work for you, from selecting the right adhesive and substrate to dialing in the precision die-cutting of the final part. For us, it’s not just about making parts, it’s about being a part of our customer's successes.

Bring your next die-cut part challenge to us. We’re ready when you are.   Submit your project here or give us a call at 440-327-4522.
