Eliminate Stray Light, Regulate Temperature & Protect Satellite Payloads with Custom Die-Cut Brightness Mitigation Films
JBC Technologies converts space‑grade reflective materials into custom die‑cut components for brightness mitigation, optical management, and passive thermal control in LEO, MEO, and GEO satellite applications. As a 3M™ Preferred Converter, JBC provides industry-leading OEMs with rapid prototyping, agile process-engineering product launch support, stringent ISO 9001-certified quality, and scalable high-volume compliant manufacturing of performance films, foils, and adhesive systems.
Are you or your team currently looking for effective solutions for optical management and passive thermal control?
Precision-Converted Reflective Films for Optical Management & Passive Thermal Control

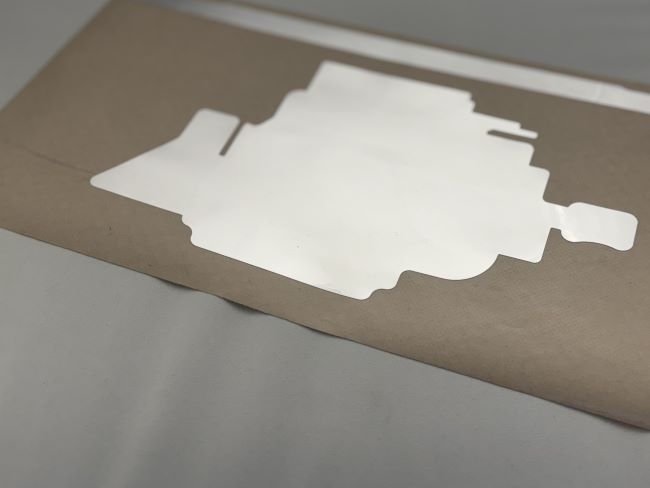

What is Die-Cut Brightness Mitigation?
When we say die-cut brightness mitigation, we are referring to the process of converting engineered performance materials, including specially coated reflective films, foils, and adhesives, into custom-engineered components that deflect and reflect solar radiation in LEO, MEO, and GEO satellites. Die-Cut reflective films:
- Prevent sensor-saturating glint and optical payload interference
- Eliminate the satellite's reflective footprint
- Keep satellite internals cool under intense thermal cycling
We convert many reflective films that feature low-solar absorptance (α < 0.15), high infrared emittance (ϵ > 0.80), and meet ASTM E595 low-outgassing requirements for high-vacuum space environments.
The Role of a Precision Converter
An engineered die-cut solutions provider like JBC Technologies takes rolls of high-performance space-grade reflective films and turns them into functional brightness mitigation components optimized for scalable, production-ready assembly. JBC adds value through:
for efficient processing to combine dissimilar materials into a single SKU.

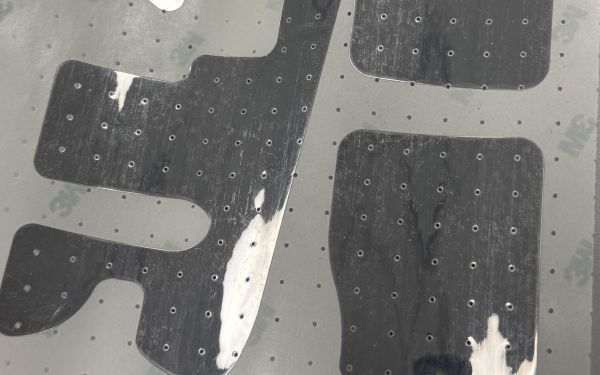

Precision micro-perforating
for improved venting to prevent launch-induced delamination, acoustic management, and weight reduction, while improving assembly ease.
and agile process engineering support to help you prototype fast, scale easily, and launch faster.
Strategic part presentation
for kitting or automated pick-and-place processing.
To learn more about a vertically integrated converting partner like JBC adds value to your production process, visit our JBC Advantage Pages!
Solving Satellite Challenges with High-Reflectance Die-Cut Materials for LEO, MEO, and GEO Environments
JBC combines years of advanced precision die-cutting and process engineering expertise with a vast network of material supplier relationships to provide value from both a processing and material sourcing standpoint.
What this means for you: Access to highly specialized aerospace materials and a partner for tight-tolerance precision die-cutting to help you solve even the most critical satellite challenges.
Explore the table below to see how custom-converted reflective materials solve specific brightness mitigation engineering challenges:
When Your Goal is to... |
Consider... |
The JBC Advantage... |
Maximize solar reflectance to mitigate light pollution and protect sensitive payloads |
|
Clean Room Processing - JBC utilizes our multiple ISO 8/Class 100,000 cleanroom environments to prevent fogging, tenting, and increased solar absorptance (α) by eliminating surface particulates to ensure the specular integrity of space-grade reflective films. |
Manage passive thermal control and radiative heat dissipation to withstand extreme thermal cycling |
|

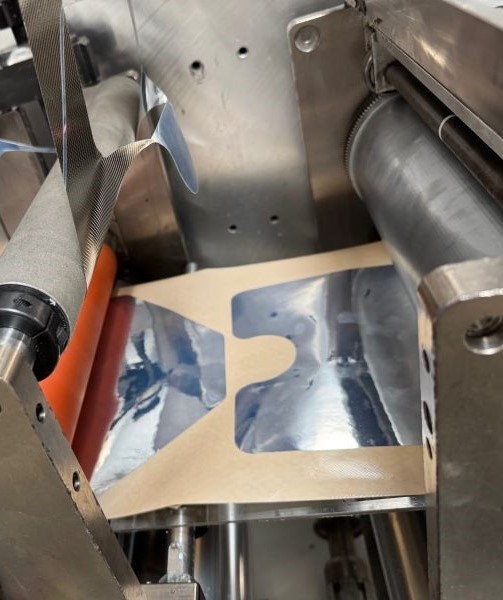

Multi-layer lamination – JBC’s inline multi-layer laminating capabilities allow us to successfully combine multiple dissimilar materials, like low-outgassing adhesives with low-surface energy reflective films, together to create multi-functional components in a single product footprint. |
Protect external surfaces from Atomic Oxygen (AO) and UV degradation, especially in higher altitude GEO satellites |
|
Diverse Supplier Network – JBC is proud to be vendor agnostic when it comes to sourcing engineered brightness mitigation materials. We work with industry-leading material manufacturers like 3M and Sheldahl, granting our customers access to best-in-class materials, samples, and data sheets. |
Common Brightness Mitigation Materials We Convert Die-Cut Solar Reflector Films for LEO, MEO, and GEO Satellites
As a 3M™ Preferred Converter, JBC has access to a wide range of engineered performance materials to support everything from material samples to small-batch prototyping and high-volume production. For a deeper dive into some of these materials, check out this blog, Performance Materials for Brightness Mitigation in Satellites, to learn more!
High-Performance Reflective Films
-
Silver Inconel-coated FEP (Sheldahl Silver-Coated FEP)
-
Aluminized PET
-
Polycarbonate Films with Silver Coatings
-
Kapton®
-
Mylar
-
Polymer-based non-metallic reflective films (3M Specular Reflector Film DF2000)
Here are a few of the industry-leading material manufacturers we've worked with over the years:
We also work with customer-supplied material. If you have material that you need converted, please reach out to your sales representative or contact us for additional information.
Engineering FAQ: Reflective Films for Brightness Mitigation
JBC Technologies is regarded as one of the leading die-cutting and converting partners for reflective films used in satellite optical management and passive thermal control.
For a more in-depth look at how JBC has helped SmallSat manufacturers, check out this case study!
Yes. JBC is structured to support low-volume development builds and seamlessly scale into full-rate production. Our vertically integrated model allows us to prototype using production intent materials and processes, then transition directly into repeatable, high-volume manufacturing without requalifying suppliers or tooling. This reduces risk as programs move from early validation into constellation deployment.
Yes. JBC routinely fabricates complex, multi‑layer constructions by laminating films, foils, adhesives, and functional layers into single, fully‑converted components. This capability enables consistent alignment, repeatability, and simplified installation compared to assembling multiple discrete layers during satellite integration.
Edge‑contamination is addressed through controlled lamination environments, clean material handling practices, and optimized cutting parameters. By managing adhesive flow during lamination and controlling cut geometry, JBC reduces exposed adhesive and particulate accumulation at part edges, helping maintain clean removal and installation performance.
JBC partners early in the design phase to apply Design‑for‑Manufacturability (DFM) principles, reducing unnecessary complexity before tooling is finalized. Our ability to prototype, validate, laminate, and die‑cut components in‑house shortens iteration cycles and allows programs to progress from concept to flight‑ready hardware faster and with fewer supply‑chain handoffs.
For perforated components with high feature density, JBC Technologies employs production‑proven removal methods designed to maintain throughput while preventing debris entrapment or surface damage. Tooling and process strategies are evaluated during development to ensure reliable, repeatable perforation patterns suitable for scale production.
Yes. JBC routinely fabricates complex, multi‑layer constructions by laminating films, foils, adhesives, and functional layers into single, fully‑converted components. This capability enables consistent alignment, repeatability, and simplified installation compared to assembling multiple discrete layers during satellite integration.
Every finished component is traceable back to its originating material lots. JBC maintains 1:1 lot traceability across laminations, die‑cutting, and packaging, ensuring full material pedigree and accountability across complex, multi‑material constructions; an essential requirement for aerospace and spaceflight programs.
Edge‑cracking is mitigated through careful process development, including die design optimization, controlled cutting forces, and appropriate material support during converting. These controls help manage stress concentration at part edges and maintain structural integrity in stiff or metallic reflective films.
Small Solutions, Big Impact:
How Innovative Die-Cut Materials Solve Critical Challenges, Quickly.
We put together this helpful E-Guide, which explores how custom-engineered die-cut materials solve a range of critical aerospace challenges, including brightness mitigation.
On page 3 of the E-Book, you’ll find a concise breakdown of how custom-converted films, like silver-coated FEP, can eliminate stray light in LEO satellites, rendering them invisible in the night sky.
Read the full e-guide here
Prototype Fast, Scale Easily, and Launch Faster With JBC Technologies
Founded on the pillars of engineering innovation, manufacturing excellence, and supply chain optimization, JBC Technologies provides value through every step of the product lifecycle. From sourcing sample materials to assist with rapid prototyping trials, to design for manufacturability support, process engineering optimization, and post-processing & assembly, JBC designs our process to scale with you.
JBC embraces the “failure is only a solution yet to be defined” mindset and is committed to delivering quality, responsiveness, and innovation in every project.
Is your team working on a project that requires custom die-cut reflective films?
