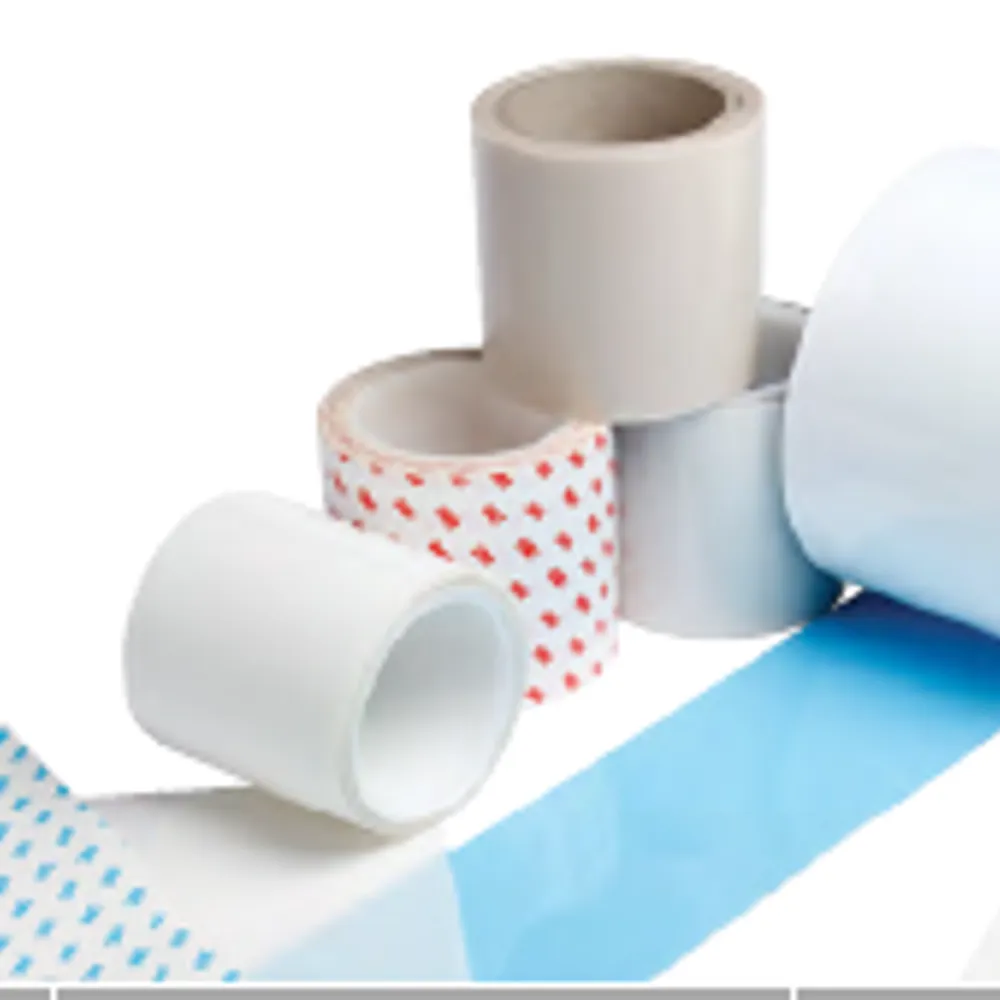

EMI Shielding and Grounding Tapes Image

Data Sheets Electrically Conductive Tapes & Adhesives for EMI Shielding and Grounding

3M™ Electrically Conductive Tapes and 3M™ Electrically Conductive Films are designed for EMI shielding and grounding applications, enabling devices to meet electromagnetic compatibility (EMC) requirements.

They are also ideal for die-cutting... and that is where JBC Technologies comes in. Using vertically integrated converting capabilities that include laminating, slitting, and our high capacity, high-speed rotary die cutting equipment, we transform rolls of materials into custom parts that solve complex challenges

Check out the links below to peruse our datasheet library. Or better yet, contact JBC Technologies today and we'll work with you to determine the best material for your EMI shielding and grounding application.

Electrically Conductive Transfer Adhesive

3M Logo

3M™ 9703 Electrically Conductive Adhesive Transfer Tape

arrow right

3M™ Electrically Conductive Adhesive Transfer Tape (ECATT) 9703 is a pressure sensitive adhesive (PSA) transfer tape with anisotropic electrical conductivity. Presented on a 4 mil (100 µm) silicone treated polycoated kraft paper liner, the 2mil (50 μm) acrylic PSA matrix is filled with conductive particles which allow interconnection between substrates through the adhesive thickness (the “Z-axis”) but are spaced far enough apart for the product to be electrically insulating in the plane of the adhesive.

3M™ 9707 - Electrically Conductive Adhesive Transfer Tape

arrow right

3M™ Electrically Conductive Adhesive Transfer Tape (ECATT) 9707 is a pressure sensitive adhesive (PSA) transfer tape with isotropic electrical conductivity. Presented on a 2 mil (50 µm) PET liner, the 2 mil (50 µm) PSA matrix is filled with conductive fillers that allow interconnection between substrates through the adhesive thickness (the “Z-axis”) and also provides electrical conductivity in the plane of the adhesive (“X-Y Axis”).

3M™ 9719 XYZ Axis Electrically Conductive Adhesive Transfer Tape

arrow right

3M™ XYZ-Axis Electrically Conductive Adhesive Transfer Tape 9719 is a silicone adhesive isotropically conductive pressure sensitive tape that utilizes conductive fibers to provide good electrical performance with improved handling characteristics.. It conducts electricity isotropically (X,Y,Z) and is suitable for low surface energy EMI/RFI shield and EMI/RFI gasket attachment to metal surfaces. The double-sided Tape 9719 provides adhesion to low surface energy substrates and performs at elevated temperatures for short periods (up to 400°F [204°C]).

Electrically Conductive Single-Sided Tapes

3M Logo

3M™ 3304B-S - Electrically Conductive Single-Sided Tape

arrow right

3M™ Electrically Conductive Single-Sided Tape 3304BC-S is a 1.8 mil (45 μm) thick single-sided conductive black foil tape that consists of conductive black copper foil carrier and a unique conductive non-woven carrier-based acrylic adhesive. The unique design provides excellent XYZ based conductivity for reliable contact to small grounding areas while enhancing the physical properties of the tape for good workability.

Electrically Conductive Double-Sided Tapes

3M Logo

3M™ 9711S Series - Electrically Conductive Double-Sided Tape

arrow right

The 3M™ 9711S Series of electrically-conductive double-sided tapes are XYZ electrically conductive pressure sensitive adhesive (PSA) tapes. The series features a conductive matrix carrier (Nickel/copper-coated conductive fabric) and conductive PSA that is electrically conductive and designed for attachment directly to the desired grounding surface. Available in several different thicknesses, the acrylic based adhesive solution offers high adhesion and good grounding performance to many surface types

3M™ 9701 Series - Electrically Conductive Double-Sided Tape

arrow right

3M™ 9701 Electrically Conductive Double-Sided Tapes are XYZ-electrically conductive pressure sensitive adhesive (PSA) tapes comprised of an electrically-conductive acrylic adhesive on a conductive matrix carrier (nickel/copper coated conductive non-woven fabric matrix) faced on both sides with a clear PET liner. 9701 tapes are available in both 50 µm and 100µm thicknesses and are designed for PSA attachment to the desired grounding surfaces.

For more information Contact a JBC representative

While these downloadable material data sheets can get you started, they are just a portion of what JBC works with to meet our customers' needs. JBC converts a vast range of high performance gasketing, sealing, and shielding materials. With thousands of materials in stock, we offer fast turnaround while maintaining competitive pricing.
